A2 Magic
14mm Corridor Progressive Lens Design
A2 Magic is the ultimate short corridor progressive lens design with the widest far vision zone in the market. Enabling smooth transition from far to near vision, as well as clear vision at medium range, A2 Vision is quick and easy to get accustomed to.
A2 Magic offers an asymmetric, aspheric soft lens design with a minimum fitting height of only 17 millimeters. The design is, therefore, suitable for a variety of frame sizes, allowing the user to enjoy both advanced progressive lenses and a trendy small frame.
* Measured on base 4.00 addition 2.00
A2 Magic offers an asymmetric, aspheric soft lens design with a minimum fitting height of only 17 millimeters. The design is, therefore, suitable for a variety of frame sizes, allowing the user to enjoy both advanced progressive lenses and a trendy small frame.

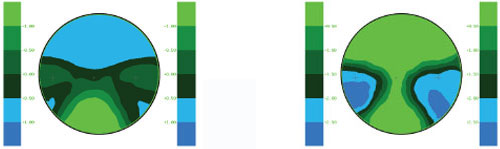

Power Map Cylinder Map
Technical Data
| Diopter | Mm | |
| Distance Width (2mm above MRP) | 0.5D 1.0 |
10.4mm
Clear
|
| Distance Width (8mm above MRP) |
0.5D
1.0D
|
23.0mm
Clear
|
| Height of Iso-Astigmatism Line |
0.5D
1.0D
|
6.8mm
5.5mm
|
| Reading Zone Width (14mm below MRP) |
0.5D
1.0D
|
8.3mm
14.0mm
|
| Maximum Nasal Astigmatism | -2.5mm | |
| Corridor Width |
0.5D
1.0D
|
4.6mm
8.7mm
|
| Fitting Cross (above of MRP) | 2.0mm | |
| Start of Progressive (above of MPR) | 2.0mm | |
| Progressive (below of MRP) | 14.0mm | |
| Minimum Fitting Height | 17mm |
Prescription Range
| Mold Nominal Base Curve | Mold Radius (RCX) |
| 2.50 | 193.90 |
| 4.50 | 125.95 |
| 6.50 | 84.60 |
| 8.00 | 68.75 |
Mold Availability
| Bases | 2.50, 4.50, 6.50, 8.00 |
| Addition Powers | 1.00 to 3.50 in 0.25D steps |
| Refractive Indexes | 1.498, 1.56, 1.60, 1.67, 1.586 (PC) |
